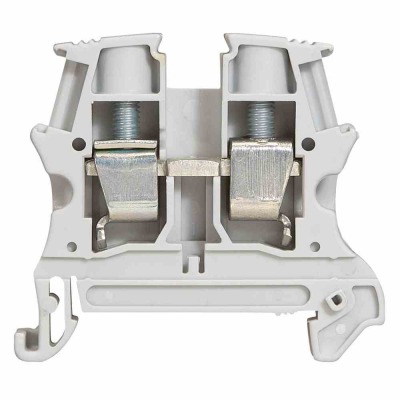

Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 10 - grey
Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 10 - grey
  • Manufacturer: Legrand
  • Manufacturers ID: 037163
  • Product group: Terminal blocks
  • Product category: Feed-through terminal block
  • Packaging quantity: 30 pcs.
  • Delivery time, if products is out of stock: 1 Weeks

In Stock:

  • Slokas iela 33
  • Sniķeres iela 31

Price with VAT:

€ 1.39

Price with out VAT: € 1.15

Unit: 1 pcs.

Specification

EAN Code: 3245060371630

Weight: 0.018 kg

Packaging quantity: 30 pcs.

Width/grid dimension: 10 mm

Inflammability class of insulation material acc. with UL94: V2

Operation temperature: 40 oC

Colour: Grey

Closing plate required: True

Length: 52.5 mm

Height at lowest possible mounting height: 46.5 mm

Connectable conductor cross section multi-wired: 10 mm2

Connectable conductor cross section solid-core: 16 mm2

Type of electrical connection 1: Screw connection

Rated voltage: 800 V

Rated current In: 57 A

Number of levels: 1

Connection position: Sideways

Type of electrical connection 2: Screw connection

Explosion-tested version 'Ex e': True

Material insulation body: Thermoplastic

Internally connected stages: False

Mounting method: DIN rail (top hat rail) 35 mm

Number of clamp positions per level: 2

Connectable conductor cross section fine-strand without cable end sleeve: 16 mm2
