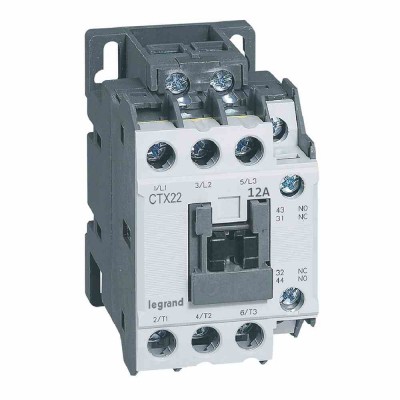

3-pole contactors CTX? 22 - 12 A - 230 V~ - 1 NO + 1 NC - screw terminals
3-pole contactors CTX? 22 - 12 A - 230 V~ - 1 NO + 1 NC - screw terminals
  • Manufacturer: Legrand
  • Manufacturers ID: 416096
  • Product group: Low-voltage industrial components
  • Product category: Power contactor, AC switching
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 1 Weeks

In Stock: 0

Price with VAT:

€ 17.90

Price with out VAT: € 14.79

Unit: 1 pcs.

Specification

EAN Code: 3414970399762

Weight: 0.343 kg

Packaging quantity: 1 pcs.

Number of main contacts as normally open contact: 3

Number of normally closed contacts as main contact: 0

Type of electrical connection of main circuit: Cable clamp

Number of auxiliary contacts as normally closed contact: 1

Rated control supply voltage Us at AC 60HZ: 253 V

Rated control supply voltage Us at AC 50HZ: 253 V

Rated operation power Ie at AC-4, 400 V: 4 kW

Rated operation current Ie at AC-4, 400 V: 9 A

Rated operation power at AC-3, 400 V: 5.5 kW

Modular version: True

Rated operation current Ie at AC-3, 400 V: 12 A

Rated operation current Ie at AC-1, 400 V: 25 A

Voltage type for actuating: AC

Rated control supply voltage Us at DC: -
