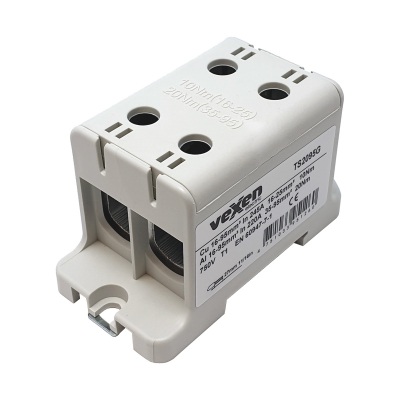

TS2095G L universal terminal block Al/Cu 2x16-95mm2
TS2095G L universal terminal block Al/Cu 2x16-95mm2
  • Manufacturer: VEXEN Electric
  • Manufacturers ID: TS2095G
  • Product group: Terminal blocks
  • Product category: Feed-through terminal block
  • Packaging quantity: 3 pcs.
  • Delivery time, if products is out of stock: 6 Weeks

In Stock:

  • Firsa Sadovņikova 9
  • Brīvības gatve 352
  • Slokas iela 33
  • Sniķeres iela 31

Price with VAT:

€ 13.92

Price with out VAT: € 11.50

Unit: 1 pcs.

Specification

EAN Code: 4751033951260

Weight: 0.165 kg

Packaging quantity: 3 pcs.

Connectable conductor cross section fine-strand without cable end sleeve: 70 mm2

Connectable conductor cross section fine-strand with cable end sleeve: 70 mm2

Connectable conductor cross section solid-core: -

Connectable conductor cross section multi-wired: 95 mm2

Rated current In: 490 A

Rated voltage: 750 V

Type of electrical connection 1: Screw connection

Type of electrical connection 2: -

Connection position: Sideways

Number of clamp positions per level: -

Mounting method: DIN rail (top hat rail) 35 mm

Material insulation body: Thermoplastic

Operation temperature: 80 oC

Inflammability class of insulation material acc. with UL94: V0

Width/grid dimension: 42 mm

Height at lowest possible mounting height: 51 mm

Length: 84 mm

Explosion-tested version 'Ex e': False

Closing plate required: False

Colour: Grey

Internally connected stages: -
