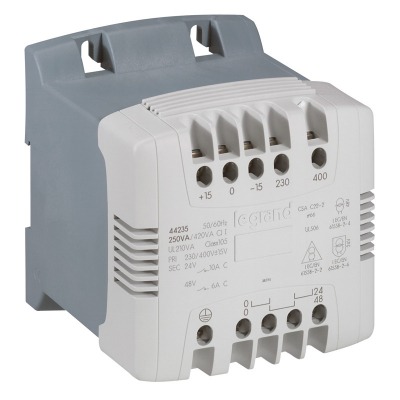

Control and signal. transfo - 1 Ph - prim 230/400 V sec 115/230 V - 250 VA-screw
Control and signal. transfo - 1 Ph - prim 230/400 V sec 115/230 V - 250 VA-screw
  • Manufacturer: Legrand
  • Manufacturers ID: 044265
  • Product group: Low-voltage industrial components
  • Product category: One-phase control transformer
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 1 Weeks

In Stock: 0

Price with VAT:

€ 0

Price with out VAT: € 0

Unit: 1 pcs.

Specification

EAN Code: 3245060442651

Weight: 3.938 kg

Packaging quantity: 1 pcs.

Built as energy saving transformer: False

Primary voltage 1: 215 V

Primary voltage 2: 230 V

Primary voltage 3: 245 V

Built as safety transformer: False

Built as isolating transformer: True

Secondary voltage 1: 115 V

Secondary voltage 2: 230 V

Short-circuit-proof: False

Rated apparent power: 250 VA

Modular version: True

Primary voltage 4: 385 V

Primary voltage 5: 400 V

Primary voltage 6: 415 V

Depth: 115 mm

Degree of protection (IP): IP2X

Ring core: False

Suitable for mounting on PCB: False

Type of insulation material acc. IEC 85: B

Relative short circuit voltage: 6.08 %

Width: 106 mm

Height: 123 mm

Secondary voltage 10: -

Primary voltage 7: -

Secondary voltage 7: -

Primary voltage 9: -

Primary voltage 8: -

Secondary voltage 8: -

Secondary voltage 9: -

Secondary voltage 4: -

Secondary voltage 5: -

Conductor material: -

Secondary voltage 6: -

Secondary voltage 3: -

Primary voltage 10: -
