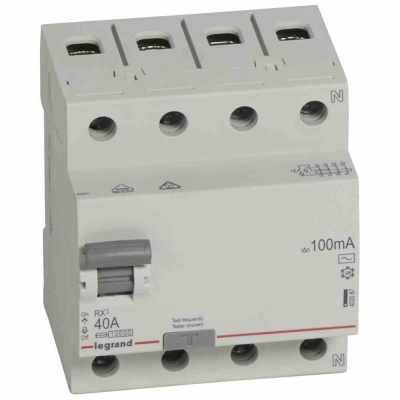

RCD LR - 4P - 400 V~ - 40 A - 100 mA - AC type
RCD LR - 4P - 400 V~ - 40 A - 100 mA - AC type
  • Manufacturer: Legrand
  • Manufacturers ID: 402067
  • Product group: Circuit breakers and fuses
  • Product category: Residual current circuit breaker (RCCB)
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 2 Weeks

In Stock:

  • Firsa Sadovņikova 9
  • Slokas iela 33
  • Sniķeres iela 31

Price with VAT:

€ 85.16

Price with out VAT: € 70.38

Unit: 1 pcs.

Specification

EAN Code: 3245064020671

Weight: 0.341 kg

Packaging quantity: 1 pcs.

Built-in depth: 44 mm

Rated voltage: 400 V

Rated current: 40 A

Number of poles: 4

Width in number of modular spacings: 4

Additional equipment possible: False

Frequency: 50 Hz

Degree of protection (IP): IP20

Selective protection: False

Short-time delayed tripping: False

Rated fault current: 100 A

Leakage current type: AC

Short-circuit breaking capacity (Icw): 10 kA

Surge current capacity: 0.25 kA

Construction size (in accordance with DIN 43880): 1

Mounting method: DIN rail

Connectable conductor cross section multi-wired: 35 mm2

Connectable conductor cross section solid-core: 50 mm2

Pollution degree: 2

With interlocking device: True

Rated insulation voltage Ui: 500 V

Ambient temperature during operating: 60 oC
