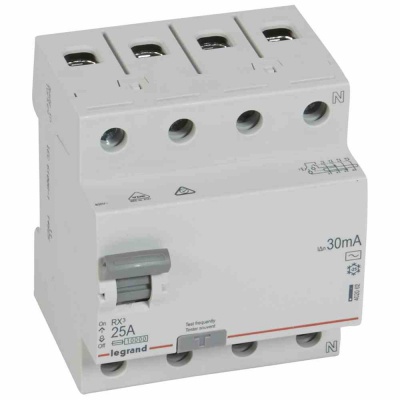

RCD LR 25A
RCD LR 25A
  • Manufacturer: Legrand
  • Manufacturers ID: 402062
  • Product group: Circuit breakers and fuses
  • Product category: Residual current circuit breaker (RCCB)
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 1 Weeks

In Stock: 0

Price with VAT:

€ 49.90

Price with out VAT: € 41.24

Unit: 1 pcs.

Specification

EAN Code: 3245064020626

Weight: 0.337 kg

Packaging quantity: 1 pcs.

Mounting method: DIN rail

Short-circuit breaking capacity (Icw): 10 kA

Surge current capacity: 0.25 kA

Construction size (in accordance with DIN 43880): 1

Width in number of modular spacings: 4

Additional equipment possible: False

Frequency: 50 Hz

Degree of protection (IP): IP20

Selective protection: False

Short-time delayed tripping: False

Rated fault current: 30 A

Leakage current type: AC

Built-in depth: 44 mm

Rated voltage: 400 V

Rated current: 25 A

Number of poles: 4

Connectable conductor cross section multi-wired: 35 mm2

Connectable conductor cross section solid-core: 50 mm2

Pollution degree: 2

With interlocking device: True

Rated insulation voltage Ui: 500 V

Ambient temperature during operating: 60 oC
