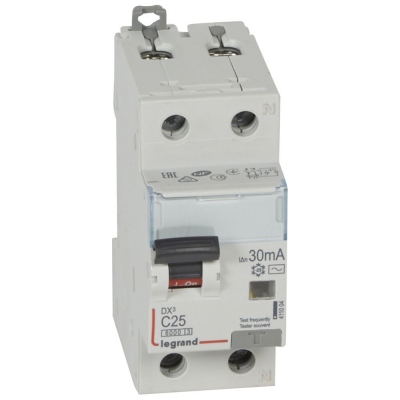

RCBO - DX? 6000 -10 kA -1P+N-230 V~ -25 A -30 mA -AC type -N right hand
RCBO - DX? 6000 -10 kA -1P+N-230 V~ -25 A -30 mA -AC type -N right hand
RCBO - DX? 6000 -10 kA -1P+N-230 V~ -25 A -30 mA -AC type -N right hand
  • Manufacturer: Legrand
  • Manufacturers ID: 411004
  • Product group: Circuit breakers and fuses
  • Product category: Earth leakage circuit breaker
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 1 Weeks

In Stock:

  • Firsa Sadovņikova 9
  • Brīvības gatve 352
  • Slokas iela 33
  • Sniķeres iela 31

Price with VAT:

€ 47.90

Price with out VAT: € 39.59

Unit: 1 pcs.

Specification

EAN Code: 3245064110044

Weight: 0.25 kg

Packaging quantity: 1 pcs.

Rated fault current: 0.03 A

Rated current: 25 A

Rated voltage: 230 V

Number of protected poles: 1

Number of poles (total): 2

Pollution degree: 2

Concurrently switching N-neutral: True

Release characteristic: C

Frequency: 50 Hz

Rated short-circuit breaking capacity IEC 60947-2: 6 kA

Rated short-circuit breaking capacity EN 60898: 6 kA

Current limiting class: 3

Leakage current type: AC

Surge current capacity: 0.25 kA

Antinuisance tripping version: False

Voltage type: AC

Degree of protection (IP): IP20

Suitable for flush-mounted installation: True

Built-in depth: 44 mm

Width in number of modular spacings: 2

Rated insulation voltage Ui: -

Connectable conductor cross section multi-wired: 10 mm2

Connectable conductor cross section solid-core: 16 mm2

Ambient temperature during operating: -

Over voltage category: -

With interlocking device: True
