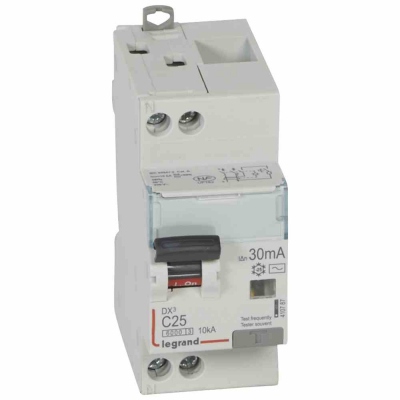

RCBO DX3 1P+N C25 6000A/10kA 30mA AC screw/screw
RCBO DX3 1P+N C25 6000A/10kA 30mA AC screw/screw
  • Manufacturer: Legrand
  • Manufacturers ID: 410787
  • Product group: Circuit breakers and fuses
  • Product category: Earth leakage circuit breaker
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 5 Weeks

In Stock:

Price with VAT:

€ 29.85

Price with out VAT: € 24.67

Unit: 1 pcs.

Specification

EAN Code: 3245064107877

Weight: 0.21 kg

Packaging quantity: 1 pcs.

Voltage type: AC

Surge current capacity: 0.25 kA

Suitable for flush-mounted installation: True

Antinuisance tripping version: False

Pollution degree: 2

Concurrently switching N-neutral: True

Release characteristic: C

Frequency: 50 Hz

Rated short-circuit breaking capacity IEC 60947-2: 10 kA

Rated short-circuit breaking capacity EN 60898: 6 kA

Current limiting class: 3

Leakage current type: AC

Degree of protection (IP): IP20

Built-in depth: 44 mm

Width in number of modular spacings: 2

Rated fault current: 0.03 A

Rated current: 25 A

Rated voltage: 230 V

Number of protected poles: 1

Number of poles (total): 2

Rated insulation voltage Ui: -

Connectable conductor cross section multi-wired: 10 mm2

Connectable conductor cross section solid-core: 16 mm2

Ambient temperature during operating: -

Over voltage category: -

With interlocking device: True
