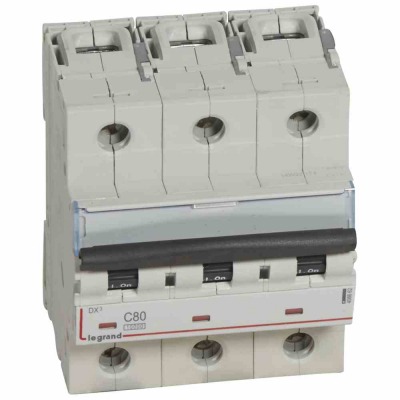

MCB DX3 3P C80 10000A
MCB DX3 3P C80 10000A
  • Manufacturer: Legrand
  • Manufacturers ID: 408662
  • Product group: Circuit breakers and fuses
  • Product category: Miniature circuit breaker (MCB)
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 1 Weeks

In Stock:

  • Firsa Sadovņikova 9
  • Slokas iela 33

Price with VAT:

€ 152.73

Price with out VAT: € 126.22

Unit: 1 pcs.

Specification

EAN Code: 3245064086622

Weight: 0.688 kg

Packaging quantity: 1 pcs.

Additional equipment possible: True

Degree of protection (IP): IP20

Built-in depth: 47 mm

Width in number of modular spacings: 4.5

Pollution degree: 3

Concurrently switching N-neutral: False

Voltage type: AC

Rated voltage: 400 V

Rated current: 80 A

Number of poles (total): 3

Release characteristic: C

Suitable for flush-mounted installation: True

Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10 kA

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 32 kA

Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 16 kA

Number of protected poles: 3

Frequency: 60 Hz

Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA

Connectable conductor cross section multi-wired: 50 mm2

Connectable conductor cross section solid-core: 70 mm2

Over voltage category: -

Current limiting class: -

Rated insulation voltage Ui: 500 V

Ambient temperature during operating: 70 oC
