- Manufacturer: Legrand
- Manufacturers ID: 420237
- Product group: Low-voltage industrial components

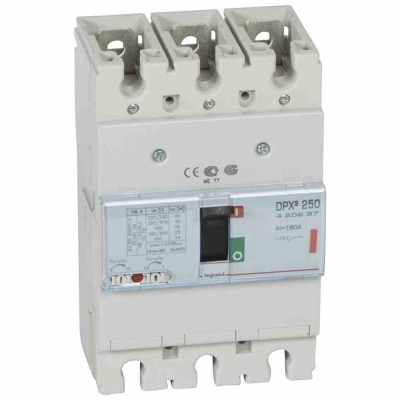

- Product category: Power circuit-breaker for trafo/generator/installation prot.
- Packaging quantity: 1 pcs.
- Delivery time, if products is out of stock: 5 Weeks
In Stock: 0
Price with VAT:
€ 298.95
Price with out VAT: € 247.07
Unit: 1 pcs.
Specification
EAN Code: 3245064202374
Weight: 1.871 kg
Packaging quantity: 1 pcs.
Rated voltage: 690 V
With switched-off indicator: True
Position of connection for main current circuit: Front side
Number of auxiliary contacts as change-over contact: 1
Number of auxiliary contacts as normally closed contact: 1
Suitable for DIN rail (top hat rail) mounting: True
Device construction: Built-in device fixed built-in technique
Type of electrical connection of main circuit: Screw connection
Integrated earth fault protection: False
Adjustment range undelayed short-circuit release: 1600 A
Degree of protection (IP): IP30
Motor drive integrated: False
Motor drive optional: True
Type of control element: Toggle
Number of poles: 3
With under voltage release: True
Adjustment range short-term delayed short-circuit release: 1600 A
Overload release current setting: 160 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 36 kA
Rated permanent current Iu: 160 A
DIN rail (top hat rail) mounting optional: True
Complete device with protection unit: True
Number of auxiliary contacts as normally open contact: -
