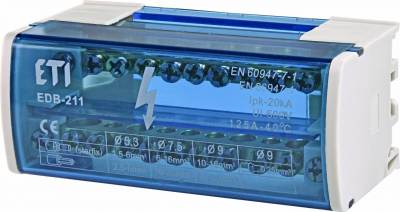

EDB-211 distribution block
EDB-211 distribution block
  • Manufacturer: ETI
  • Manufacturers ID: 001102301
  • Product group: Terminal blocks
  • Product category: Single- and multi-pole terminal strip
  • Packaging quantity: 1 pcs.
  • Delivery time, if products is out of stock: 1 Weeks

In Stock:

  • Sniķeres iela 31

Price with VAT:

€ 8.20

Price with out VAT: € 6.78

Unit: 1 pcs.

Specification

EAN Code: 3838895633327

Weight: 0.18 kg

Packaging quantity: 1 pcs.

Drill hole distance centrically: -

Explosion-tested version 'Ex e': -

Connectable conductor cross section fine-strand without cable end sleeve: -

Connectable conductor cross section fine-strand with cable end sleeve: -

Connectable conductor cross section solid-core: 16 mm2

Connectable conductor cross section multi-wired: -

Rated current In: 125 A

Rated voltage: 400 V

Type of electrical connection 1: Screw connection

Type of electrical connection 2: -

Connection position: Sideways

Number of poles: 2

Number of clamp positions per pole: 11

Mounting method: DIN rail (top hat rail) 35 mm

Material insulation body: Thermoplastic

Operation temperature: -

Inflammability class of insulation material acc. with UL94: -

Width/grid dimension: -

Height at lowest possible mounting height: 50 mm

Length: 100 mm

Closing plate required: True

Colour: Grey

Transparent: True
